About this product
A high-output LED gobo projector delivering 21,000 lm with a 6°–50° motorised zoom. Two rotating gobo wheels, an animation wheel and CMY colour mixing combine to create layered imagery on large facades, plazas and festival venues.
Key specifications
| Light source | 638W LED |
|---|---|
| Lumen output | 21000 lm |
| Illuminance | 74000 lux @ 5m / 6° |
| Colour temperature | 6100K |
| Colour rendering | CRI > 90 (CRI filter) |
| Beam angle | 6°~50° |
| Zoom | 8x + motorized linear (6-50°) |
| Colour | CMY + CTO + color wheel (7+open) |
| Gobo | 2 rotating gobo wheels 1 animation wheel |
| Image effects | Bi-directional rotating 4-facet prism Frost 5° 0%~100% linear Motorized focus Strobe 0~30Hz 4 dimming curves |
| Control | DMX512 / RDM / Art-Net / Wireless (optional), 22CH |
| Data & power connections | IP DMX IN/OUT, IP Power IN/OUT |
| IP rating | IP65 |
| Cooling | 3DVC heat sink with noiseless fan |
| Display | OLED display |
| Light source life | 20K hrs |
| Operating temperature | -10°C ~ 45°C |
| Dimensions | 514.5 x 324 x 249 mm |
| Weight | 24 kg |
Source: manufacturer datasheet, values as written by the manufacturer. Please check the latest datasheet before ordering.

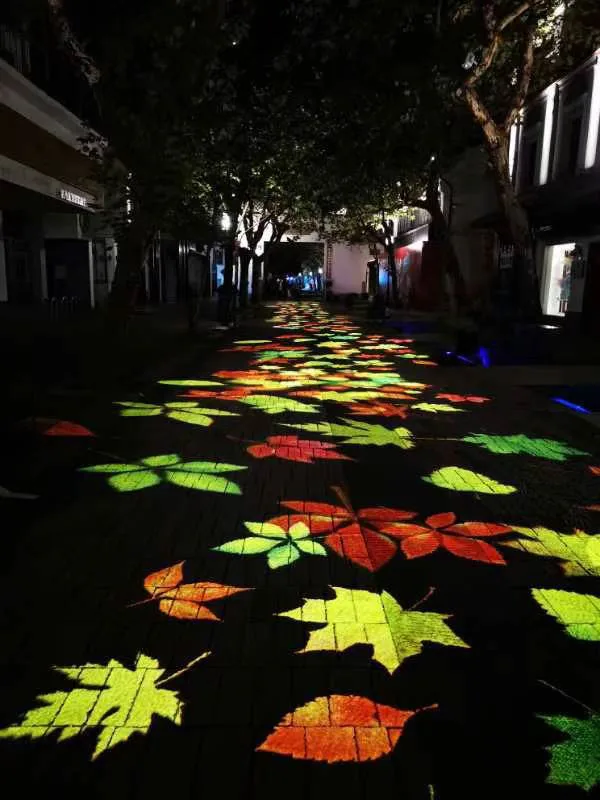

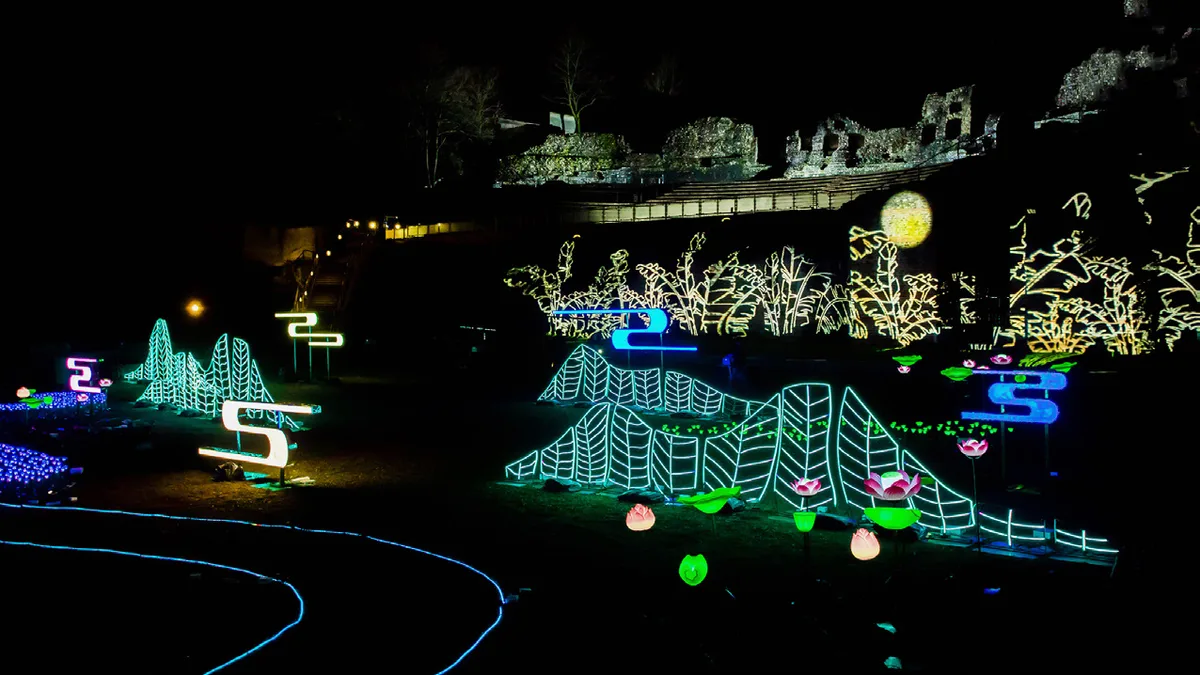

Applications
Gobo & specialBuilding facadesPlazas & festivals
Downloads
- Datasheet (PDF)Request by email →
- Photometric data (IES)Request by email →
- Installation guideRequest by email →
Files will be downloadable here once they are ready. For now, request them and we will email them to you.
