About this product
A series of square RGBW LED floodlights with a 2.8° ultra-spot beam, built to throw light over long distances with a precisely defined beam onto high-rise buildings and large facades.

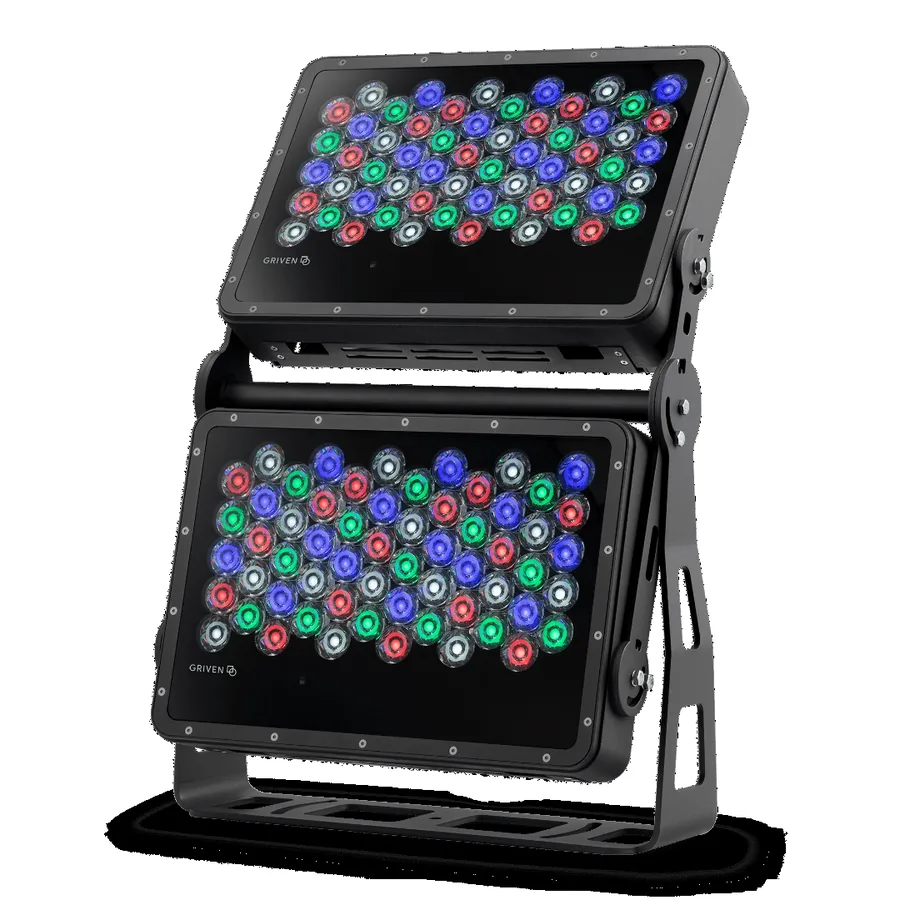

Capitonyx 600 has two LED banks with fully independent control, so one fixture can run synchronized or contrasting effects. The slim 200 and compact 100 suit installations where mounting space is limited.
The RGBW LEDs come with either 3000K or 4000K white. A Polar Edition with electrically heated glass for severe cold is available on request.
Sizes
Capitonyx 600 RGBW

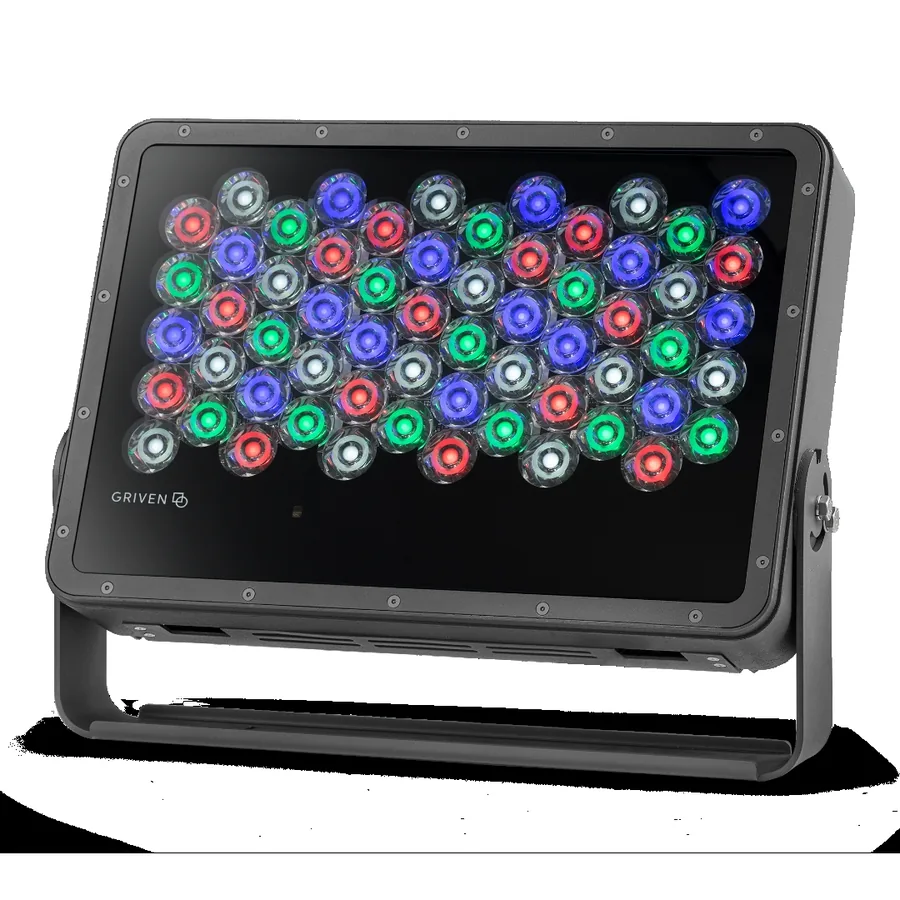

Capitonyx 300 RGBW

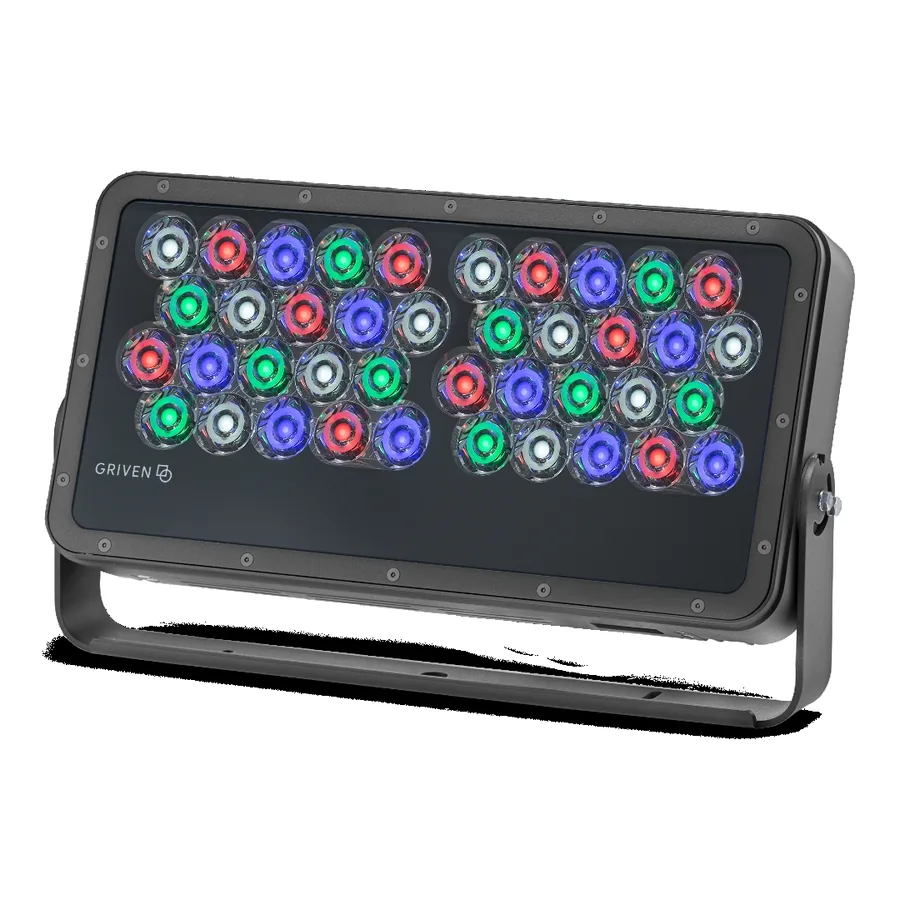

Capitonyx 200 RGBW

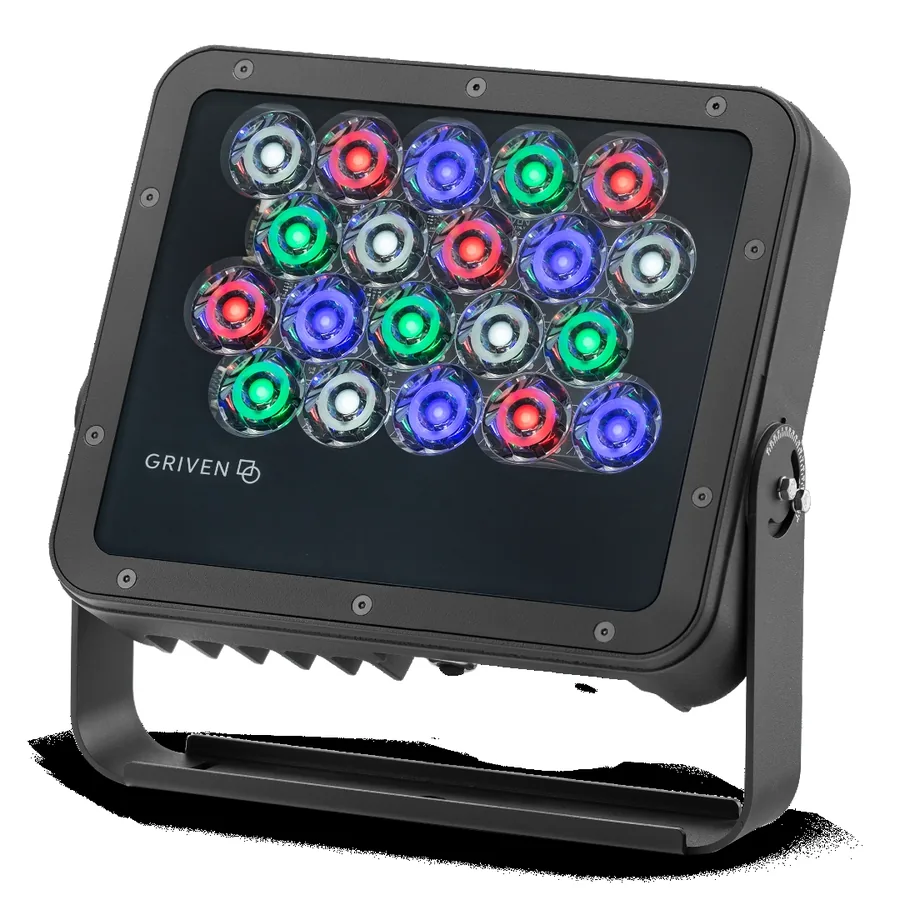

Capitonyx 100 RGBW
Key specifications
| 600 | 300 | 200 | 100 | |
|---|---|---|---|---|
| Product code | AL6023 | AL6022 | AL6021 | AL6020 |
| Colour / CCT | High brightness RGB+W 4000K power LEDs (3000K white also available) | |||
| Beam angle | 2.8° Ultra Spot | |||
| Max. lumen output | 9936 lm (each bank) | 9936 lm | 5550 lm | 2925 lm |
| Efficacy | 37 lm/W (each bank) | 37 lm/W | 36 lm/W | 40 lm/W |
| Peak intensity | 151166 cd / 1000 lm | |||
| Input | 100-277VAC / 50-60 Hz | 100-277VAC / 50-60 Hz | 100-277VAC / 50-60 Hz | 220-240VAC / 50-60 Hz |
| Power consumption | 2.42A @ 230V / 536W max. total (1.21A @ 230V / 268W each bank) | 1.21A@230V / 268W | 0.70A@230V / 154W | 0.32A@230V / 74W |
| Ingress protection | IP67 | |||
| Impact resistance | IK09 | |||
| Control | DMX-RDM (USITT DMX512-A, 4 to 8 DMX channels) Unless an RDM controller is used, the AL1321 infrared remote is required. | |||
| Size | 756×150×517 mm / 29.8×5.9×20.4” | 492.4×383×105 mm / 19.4×15×4.1” | 276×475×90 mm / 10.8×18.7×3.5” | 282×293.5×82 mm / 11.1×11.5×3.2” |
| Weight | 32.8 kg / 72.3 lb | 14.7 kg / 32.4 lb | 9.5 kg / 20.9 lb | 5.1 kg / 11.2 lb |
| Operating temperature | -40°C to 50°C / (-40°F to 122°F) | |||
| Warranty | 5 years | |||
| Polar Edition | Available on request | |||
Source: GRIVEN product datasheets (Capitonyx 600, 300, 200 and 100 RGBW, 2026-10-26), values as written by the manufacturer. Please check the latest datasheet before ordering.
Applications
Downloads
- Datasheet (PDF)Request by email →
- Photometric data (IES)Request by email →
- Installation guideRequest by email →
Files will be downloadable here once they are ready. For now, request them and we will email them to you.
