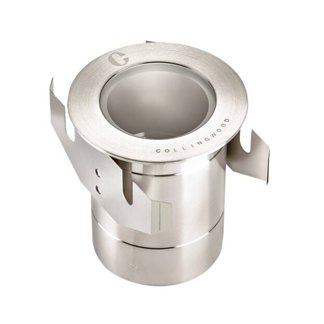

GL040 Ultra low-glare

GL040DNBL40





  • 2W, 215lm ground light
  • 2W at 350mA
  • Size: (WxD) Ø76 x 83 mm
  • IP68 ideal for outdoor areas
  • Baffled for low glare and visual comfort
  • Low voltage ground light
  • Perfect for both interior and exterior applications
  • Compliments environments with ultra low glare up-lighting effect
  • Marine-grade stainless steel 316



Features

Installation Information

CCT Range
2700K / 3000K / 4000K


Input
350mA / 700mA
IP / IK Rating
IP68 / IK08
Maximum Ambient Temperature
35°C
Colour Rendering Index
CRI>80
Weight
818g
Beam Angle
12° / 34°
Construction Material
Stainless steel (316)


UGR
UGR<16, UGR<19, UGR<22
Power consumption
2W
LED Lifetime
L70 70,000h
Im
200 Im (2700K) / 208 Im (3000K) / 215 Im (4000K)
Colour Consistency
SDCM3
Im/W
100 Im/W (2700K) / 104 Im/W (3000K) / 108 Im/W (4000K)


Walk Over / Drive Over
Walk over (Stainless Steel & Antique Brass Only)
Cut Out Size
70

Downloads


GL040  Spec sheet - PDF
Photometric data - ZIP 파일
